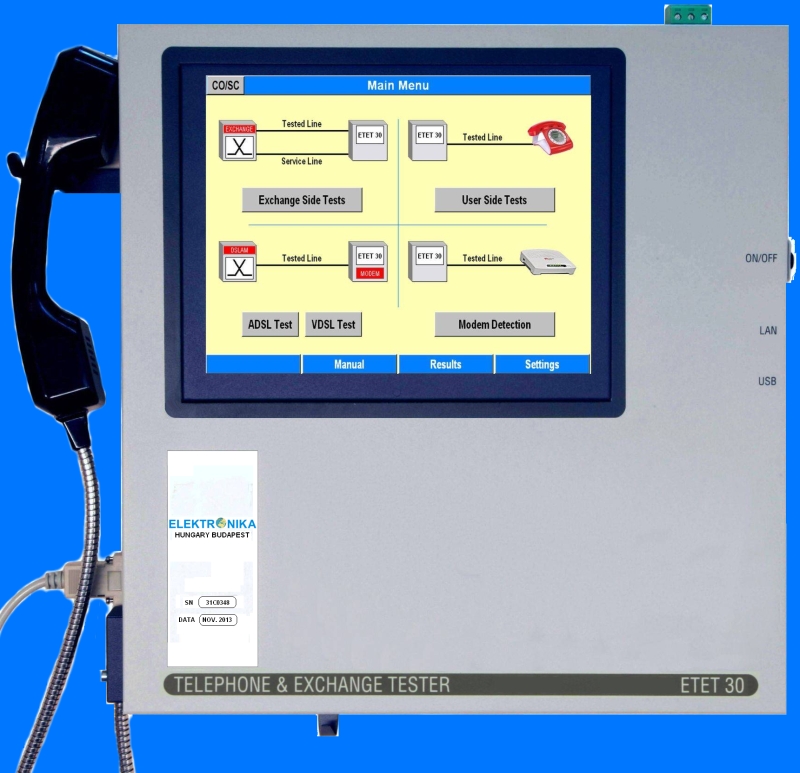

TELEPHONE, EXCHANGE & DSLAM TESTER ETET 30


SIX INSTRUMENTS IN ONE
DMM Line Tester For the test of the local access line
Exchange Simulator For the test of the subscriber telephone set
Telephone Simulator For the test of exchange parameters
Golden Modem For the test of the ADSL/VDL DSLAM functions
Spectrum Analyzer For modem and disturber detection
High Resolution TDR For the location of cable faults.
DMM LINE TESTER
■ AC-DC voltage and current measurements
■ Insulation and loop resistance measurements
■ Capacitance measurement
EXCHANGE SIMULATOR
■ Sending ringing voltage to the subscriber
■ Communication with the subscriber
■ Sending 800 Hz test tone to the subscriber
#9632; Evaluation of an incoming call from the subscriber
TELEPHONE SIMULATOR
■ Measurement of battery and ringing voltages
■ Checking the ability of exchange to recognize the dial tones (or pulses)
GOLDEN MODEM
■ Synchronization with the DSLAM and evaluation of all line parameters and error counters
■ ADSL2/2+ and VDSL1/2 modem simulation
■ ATM layer tests
■ Bridge, router and PC replacement mode
■ Different type of WAN connections tests
■ Data throughput test
■ IP ping and trace route tests
SPECTRUM ANALYZER
■ Modem detection
■ Disturbing voltage detection
TDR
■ Exchange and subscriber side cable fault location


ETET 30

ETET 30 is an excellent tool
to get the proper diagnosis.
